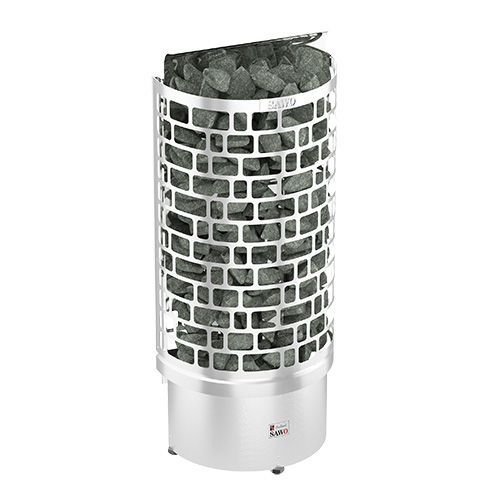

Aries Wall SAWO

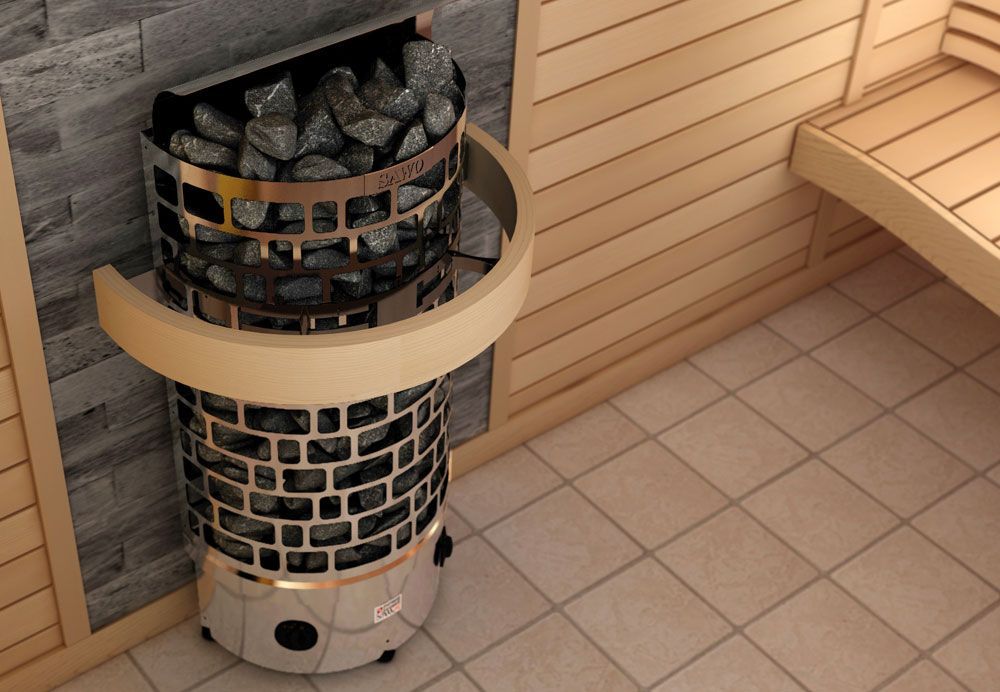

Wall Aries heater is best for narrow benches as it can lean on the sides of the wall. These heaters suit well if you plan to upgrade your old wall mounted heaters.

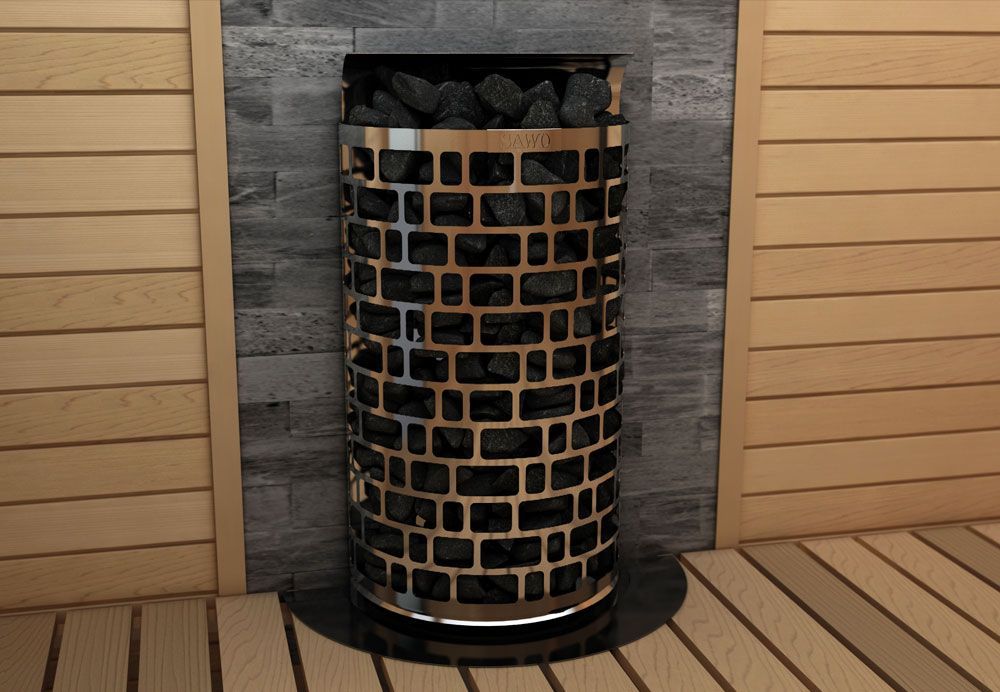

The wide and tall body of wall tower heaters will perfectly cover the markings on the wall made from your previous heater. One of the advantage of Aries built-in heater is that the thermostat and the timer controls can switch sides! The access of the controls is much more flexible.

Insallation Diagram


Collars & Guards:

Click image to download manual 📋

Quick

Easy Install

Premium Customer Service

Add Value To Your Home

Technical Data

Heater Model Number Power (KW) Control Size Of Heater (mm) Length x Width x Height Size Of Room (M3) Min - Max Stones (KG)
ARI3-45NB-WL CNR 4.5 8 + 4h 415 x 250 x 1030 3 - 6 65
ARI3-60NB-WL 6.0 8 + 4h 415 x 250 x 1030 5 - 9 65
ARI3-75NB-WL 7.5 8 + 4h 415 x 250 x 1030 7 - 13 65
ARI3-90NB-WL 9 8 + 4h 415 x 250 x 1030 8 - 14 65
ARI3-45NS-WL 4.5 Seperate 415 x 250 x 1030 3 - 6 65
ARI3-60NS-WL 6.0 Seperate 415 x 250 x 1030 5 - 9 65
